1. Product introduction:

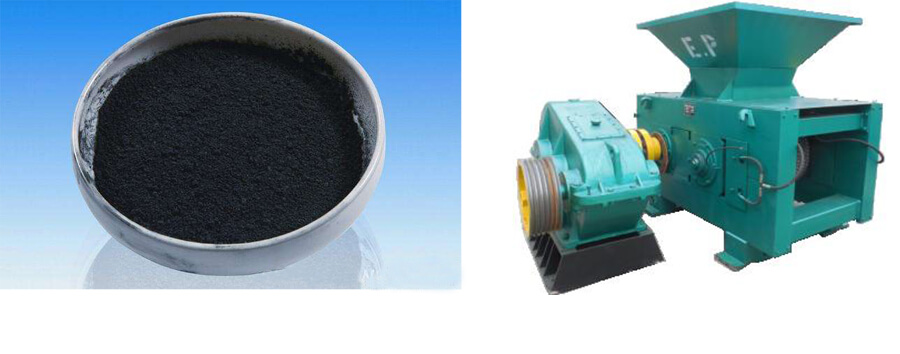

Flue dust briquette machine can be used to suppress the coal, iron, aluminum, iron pin, iron oxide, carbon powder, slag, tailings, kaolin, sponge iron, all powder, powder, waste, waste, widely used in refractories, power plant, metallurgy, chemical industry, energy, transport, heating and other industry, the flue ash pressure ball machine production molding material, environmental protection and energy saving, convenient transportation, improve the utilization rate of the material, and has good economic benefit and social benefit.

2. Structure principle:
Flue ash pressure ball machine structure principle is: flue ash pressure ball machine as long as the structure of the transmission system, the main frame, reducer, belt conveyor, preloading device, and set the ball groove of the positioning device, hydraulic system and electric control etc. several parts composition. Continuous rotation bite into the material of roll to roll to roll to material quantitative, uniformly adding pressure ball machine preloading device makes the pre pressing device to maintain the stability of the material, and then by preloading device preloading spiral material is forced to press on and in the middle of material pre compression and transmission to two arc-shaped notch, two surface uniform distribution of the same shape and nest, the gear to rotate, so that two uniform, reverse rotation, will be transported to the notch groove and forced compression, with the roller to rotate, the elasticity and gravity take off the ball, with the motor pressure and periodic rotation of the repressive movement, realize batch production. 3. Material requirement:
1. Material dynamics control in less than 1mm of particles should be in 30-40%; 1mm to 2mm particles should be in the 30-40%, the maximum particle size should be less than 3mm of the particles should be around 10%.
2. Moisture control in 5% (the number of water on the impact of the ball into the maximum, a little more than a little less, absolutely guaranteed water uniformity, should pay special attention to).
3. Material absolutely does not allow iron or other high hardness block or other high hardness of massive debris so as not to damage the stick forming machine and shaft using department should be in process in the preparation of installation in addition to part of the iron.
